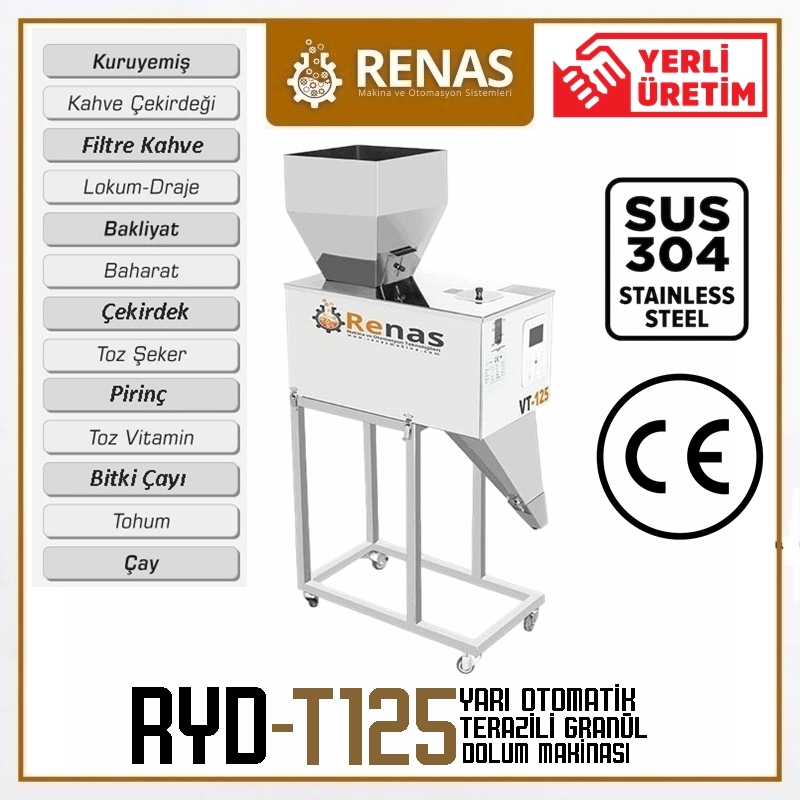

RYD-T125 Semi Automatic Weighing Powder and Granule Filling Machine - 50-2500gr

Soon in stock

Technical Specifications of RYD-T125 - 50-2500gr Powder and Granule Filling Machine

Model
RYD-T125
Body
304 Stainless
Body Sheet Thickness
1,5 mm
Indicator Display
Functional LCD
Vibration Transformer
Copper Winding
Bottom Base Sheet
304 Stainless
Intermediate Layer Sheets
304 Stainless
Weight
45 kg
Profile in Standing Models
2mm 204 profil

General Features of RYD-T125 - 50-2500gr Powder and Granule Filling Machine

Non-stick powder types, crystal products, granule products, etc. that you can make up to 5000 pieces per day. It is designed to be used in filling products.

Our machine can fill from 50 gr to 2500 gr, depending on the volume of the product, provided that it fits into the weighing pan. Since it feeds the filling pan with a vibration system, it can easily weigh even your products with flow problems.

Our machine does not require any air during its operation. For this reason, you do not need to purchase a compressor as in similar machines. You can easily operate your mobile phone from the socket where you charge it. The discharge cover of the weighing pan is opened by being driven by an electric motor. Operating noise is also less than similar machines since it does not require air.

RYD-T125 semi-automatic weighing powder and granule filling machine is controlled by a smart microprocessor control card. In this way, it calculates the pouring speed of the product in order to provide stable weight and continues the next filling more precisely. Thanks to this feature, our machine weighs much more precisely than similar machines. In a machine with good product discharge channel settings, the filling accuracy will be around 1 g even at 2.5 kg.

All surfaces that come into contact with the product or not are made of SUS 304 Stainless steel material. In this respect, it provides a hygienic working environment. With this feature of the machine, you comply with hygiene norms such as GMP and FDA.

It has a chassis made of thick profile. With this feature, you can use it on its own chassis without needing a different table. Additionally, you can use it as a desktop by removing the latches on the sides of the chassis.

RYD-T125 semi-automatic weighing powder and granule filling machine emits less noise compared to similar machines. Its special spring system prevents noise from being disturbed during operation. In this respect, we can say that it is an extremely suitable product for workshops working under apartments.

This machine has an extremely low power consumption and consumes only 150 Watts of electricity. It is a type of machine in A++ class.

It is a 100% domestically manufactured product. In this respect, you gain an advantage in accessing spare parts and service for the machine.

Thanks to the loadcell fixing and vibration fixing screws, it is not damaged during transportation. Our machine is sold in a crate made of 11mm thick wood. It is sent to you in full safety against any impacts that may occur during transportation.

It has an extremely easy to use menu. Thanks to the menu, you can work at 3 different vibration speeds. You can control the movements and production performance of the machine via the usage menu.

RYD-T125 semi-automatic weighing powder and granule filling machine can be easily calibrated in as little as two minutes. There is no need for much technical knowledge to perform calibration.

It has been developed so that you can easily fill between 50 gr - 2500 gr.

RYD-T125 - 50-2500gr Powder and Granule Filling Machine Working Method

The way the machine works is as follows, step by step:

It pours the product from the 40L volume product feeding bunker into the weighing pan.

Does the first two or 3 fillings randomly to learn the required filling speed.

It emits a short beep when it reaches the target grammage, and a long beep when it is exceeded or missing.

After the weighing is finished, it waits for you to press the pedal. It does not make a new weighing until you press the pedal.

When you press the pedal, the product opens the discharge cover and keeps the cover open until the grammage on it is zero or close to zero.

After the cover is closed, the vibration works again and the machine weighs again.

If the product in the product feeding bunker decreases and the vibration power becomes high during filling, it readjusts the required vibration speed after the filling, which cannot be done accurately. It tries different vibration speeds until it reaches the weight closest to the target weight.

If the product runs out in the product feeding bunker, it continues the vibration for a certain period of time. If it cannot complete the weight, it stops the filling by making a long beep and does not weigh again until you press the start button again after pressing the pedal, emptying the product in the weighing pan.

Optional Features That Can Be Added to RYD-T125 - 50-2500gr Powder and Granule Filling Machine

You can add many new features to the machine in line with your needs and demands.
If you wish, you can obtain an expanded product feeding bunker with a higher capacity. The bunker, which is 40 liters as standard, can be expanded up to 80 liters.
Additional mouth can be manufactured for the product discharge port depending on the size of the package you are working on.
The height of the coffee table can be increased by 50 cm compared to the current measurement.

RYD-T125 - Powder and Granule Filling Machine - 50-2500gr - Other Details

If you request additional (optional) features for the machine you choose, the delivery time of the machines will be between 5-20 days.
The product cargo is packaged in accordance with long-distance shipments.
Renas Makina has a contracted cargo company. In this way, you can provide product transportation at a more affordable price. If your own company has a contracted cargo company, you can also choose to use that cargo company.
1 year warranty is given against manufacturing defects.
