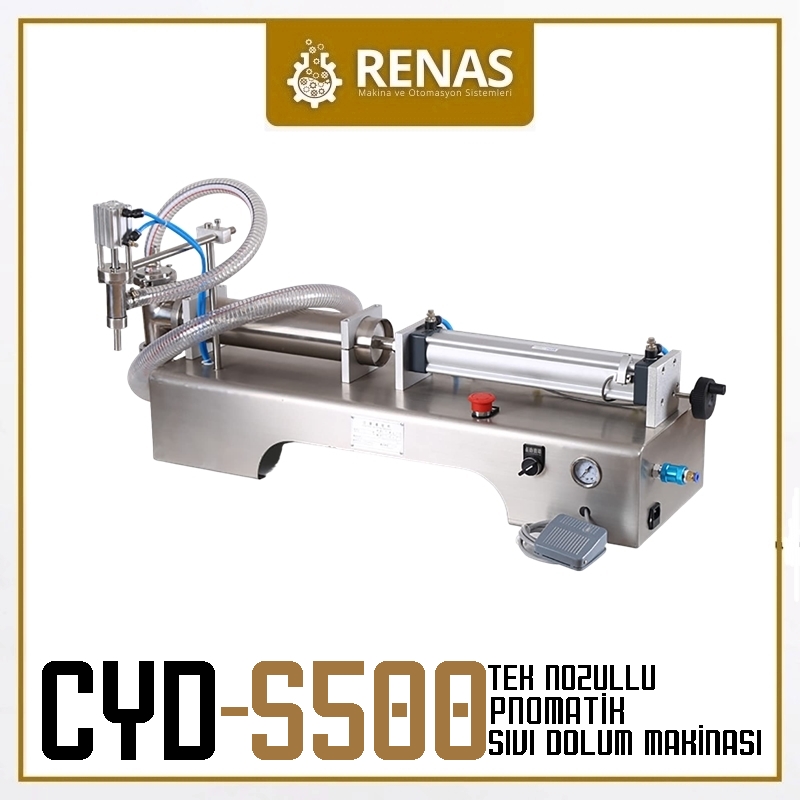

Single Nozzle Liquid Filling Machine - CYD-S500

Technical Specifications of CYD-S500 - 50-500ml Liquid Filling Machine

Model	CYD-S500
Operation Range	50 -500 ml
Capacity	10 - 30 Filling/Minute
Filling Accuracy	±%1
Input Voltage	220V AC
Input Current	1A
Power Consumption	10W
Air Pressure	0,4 - 0,6 MPa (4 - 6 Bar)
Dimensions	115 * 49,5 * 44 cm
Weight	20 kg
Mode of Operation	Pedal or Automatic
Material	Stainless Steel
Energy	220V / 50HZ
Suction Pipe	4mm 304 Stainless
Suction Pneumatic Cylinder	DNC Type Thick Wall, Honed Type
Nozzle Pneumatic Cylinder	Less risk of square piston leakage
Chassis	Certified 304
Sensors	China Production
Pedal Material	Plastic Pedal
Outer Box Material	Thick Cardboard
Gasket Group	China Manufacturing

General Features of CYD-S500 - 50-500ml Liquid Filling Machine

1. Compared to the old methods, it allows you to make a more hygienic, fast and serial liquid filling. In other words, the fillings made with this liquid filling machine are carried out in a highly professional manner.
2. Thanks to the flanged ferrule system, it can be cleaned quickly and easily. As a matter of fact, thanks to this system, the parts of the liquid filling machine can be quickly disassembled and reassembled.
3. The points in contact with the product during filling processes are made of anti-bacterial silicone material. This ensures that you fulfill the necessary hygiene rules in your production line.
4. It has a 0.5 mm precision dosing arm with 0.5 mm pitch interval. In this way, you can work with minimum drift rate in different filling ranges. As long as the dosage settings are not changed, the liquid filling process continues according to the last setting.
5. CYD-S500 single nozzle liquid filling machine allows you to comply with the occupational safety law numbered 6331 thanks to its emergency button. Thanks to the emergency button, the machine can be stopped instantly when necessary.
6. You do not need to bring the product to the machine mouth during liquid filling operations.
7. It can be operated in two different modes, manual and automatic. The pedal switch required to operate in manual mode is sent to you free of charge with the product.
8. It has a nozzle system that prevents dripping. Thus, both possible dripping and weight loss are prevented.
9. CYD-S500 single nozzle liquid filling machine has a honed suction piston unlike similar competitor products. In this way, filling wastage is kept to a minimum even in high weight liquid filling processes. On the other hand, the smooth piston surface helps the piston seals to last longer.
10. The internal conditioner within the machine protects the machine from factors such as rust that may occur in the air installation and adversely affect the pneumatic system of the machine.
11. All metal surfaces, including the body of the machine, are made of SUS 304 stainless steel. For example; machine tee, clamp and flange sections are made of stainless steel.
12. The grounding on the chassis of the machine stops the machine against possible electrical hazards that may occur in the machine body.
13. Thanks to the electro-pneumatic system, dosing is done with higher precision and filling waste is prevented.
14. It can be used for filling all low and medium viscosity liquids between 50ml - 500 ml.
15. It can be used for filling different types of liquids such as fruit juice, water, turnip, low viscosity shampoo, liquid soap, milk, oil, lube oil, syrup.

CYD-S500 - Liquid Filling Machine - 50-500ml - Other Details

• Delivery time of the machines for which additional (optional) features are requested is between 5-20 days.
• Packaged for long distance shipments.
• Thanks to the cargo company we have contracted with, the transportation of the product is made at an affordable price. If your company has a contracted cargo company, you can also choose to use that cargo.
• 1 year warranty against factory defects.
• An optional mechanical position inductor counter can be added. This feature and options are subject to charge.
