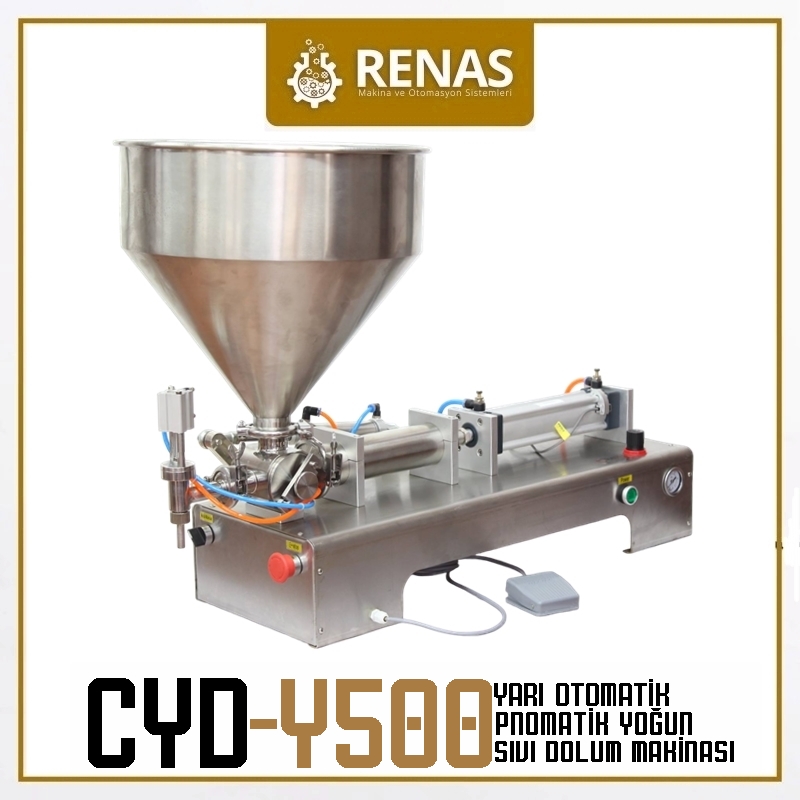

CYD-Y500 - Industrial Intensive Liquid Filling Machine - 50-500ml

CYD-Y500 - Sıvı Dolum Makinasının Teknik Özellikleri

CYD-Y500 - General Features of 50-500ml Liquid Filling Machine

1. Can fill all low and medium viscosity products between 50 ml - 500 ml.
2. The flanged ferrule system at the connection points of the CYD-Y500 semi-automatic single nozzle  Dense liquid filling machine allows the machine to be easily disassembled and cleaned quickly.

3. All materials such as gaskets and felts at the points that come into contact with the product during liquid filling are made of anti-bacterial silicone material. In this way, you will establish a system that meets hygiene conditions (GMP conditions).
4. Thanks to the precise dosing arm with 0.5 mm pitch gap, it allows working with a single machine in many filling ranges with minimum deviation rate. It continues to work at the same level unless the dosing setting is changed.
5. The emergency button of the CYD-Y500 semi-automatic single nozzle Dense liquid filling machine allows the machine to be brought to a safe position in case of emergency, regardless of the position of the machine. In this way, you have a way of production that complies with the occupational safety law numbered 6331. It does not require extra costs to comply with the law in question.
6. It can be connected to the tank or tank drains with a clamp and can also suction from sources such as drums, buckets or buckets by immersion method. It does not require extra effort to bring the product to the mouth of the machine. This helps you save time.
7. You can operate the CYD-Y500 semi-automatic single nozzle  dense liquid filling machine in two different ways according to your production speed and format. Either you can operate the machine in automatic mode with timer or you can operate it in manual mode with the pedal which is supplied free of charge with the machine.
8. The nozzle system has an anti-drip system. In this way, you will not experience dripping problems after the filling is completed. As a result, your filled bottles will not get dirty and you will not experience weight loss due to dripping.
9. Unlike other similar products, it has a honed product suction piston. This piston allows dosing with high precision even at high weights and minimizes filling waste. On the other hand, since the piston surface is smooth, the piston seals last longer than their counterparts.
10. The internal conditioner in the machine system provides protection against factors such as water and rust that may occur in the air installation and damage the pneumatic system of the machine. Thanks to the slide valve on the air inlet of the machine, you can cut off the air from the system when you are done with the machine without the need for a different valve.
11. Having an electro-pneumatic system provides the advantage of precise dosing and preventing weight wastage.
12. The earthing in the chassis of the machine protects the machine against electrical hazards that may occur in the body of the machine.
13. CYD-Y500 semi-automatic single nozzle  dense liquid filling machine can fill many liquids. Among the liquid types in question; Honey, molasses, pomegranate syrup, jam, shampoo, tahini, cream, hair lotion, tomato paste, acuka, garlic sauces can be used in the filling processes of many dense liquid products. In addition, there are many liquids such as fruit juice, water, turnip, liquid soap, milk, liquid oil, mineral oil, syrup & nbsp;.

Optional Features that can be added to CYD-Y500 - 50-500ml Liquid Filling Machine

• The sensor of the machine can be produced as triggered.

• Optionally, a counter can be added to show the number of products filled.
• The filling nozzles in the filling nozzles can be produced in different sizes according to the need.


CYD-Y500 - Liquid Filling Machine 50-500ml - Other Details

• The machine is packaged in a way suitable for easy shipment over long distances.
• The machine you purchased can be delivered to your address at an affordable price with our contracted cargo. If you wish, shipment can also be made with your own contracted cargo company.
• The machine is guaranteed for 1 year against fabrication defects.
