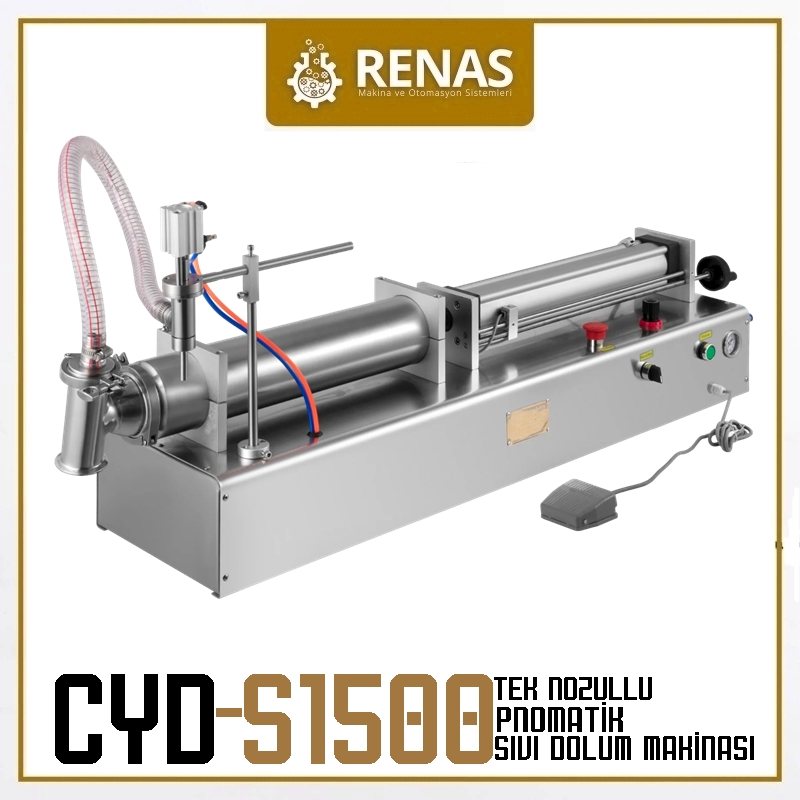

Single Nozzle Industrial Liquid Filling Machine - CYD-S1500

Technical Specifications of CYD-S1500 - 200-1500ml Liquid Filling Machine

Suction Pipe	304 Stainless
Suction Pneumatic Cylinder	Honed Type
Nozzle Pneumatic Cylinder	Square Cylinder
Chassis	Stainless Steel
Sensors	Airtac Made in Taiwan
Pedal	Plastic Pedal
Outer Box	Cardboard
Gasket Group	Silicone
Surfaces	Stainless Steel
Power Consumption	100 Watt
Energy	220V / 50HZ
Operation Range	200 -1500 ml
Capacity	10 - 15 Dolum / Dakika
Filling Accuracy	±%1
Input Voltage	220V AC
Input Current	1A
Cylinders	Airtac
Air Pressure	0,4 - 0,6 MPa (4 - 6 Bar)
Dimensions	115 * 49,5 * 44 cm
Weight	25 KG
Mode of Operation	Pedal or Automatic

General Features of CYD-S1500 - 200-1500ml Liquid Filling Machine

1. 200 ml - 1500 ml for liquid filling of all low and medium viscosity products.
2. Compared to the old methods, it provides less labor-intensive and professional filling processes.
3. It has a flanged ferrule system. Thanks to this system, the connection points of the liquid filling machine can be easily disassembled and assembled. This makes your work easier in both maintenance and cleaning works.
4. All parts such as gaskets, orings and seals used in the construction of the machine are made of silicone with anti-bacterial structure. In this way, hygiene conditions are ensured at the points in contact with the product.
5. It has a high precision dosing arm. This minimizes the rate of deviation in the filling intervals you set.
6. Thanks to the emergency button, the machine can be stopped instantly in case of emergency. Thanks to this button, you will have a liquid filling machine in accordance with the occupational safety law numbered 6331.
7. It can be connected to the tank or tank drains with a clamp and can be suctioned by immersion method from sources such as drums, buckets or buckets.
8. It can be operated in two different modes, manual and automatic. In automatic mode, there is little need for human intervention. It is suitable for mass production. In manual mode, the pedal switch that we send you free of charge with the product should be used.
9. It has a nozzle system against dripping. In this way, both the deterioration of the weight values and the contamination of the filled bottles are prevented.
10. Another feature that distinguishes the product from its competitors in the market is the honed product suction piston. With the honed product suction piston, dosing can be done with high precision even in high weight liquid filling processes. On the other hand, the smooth piston surface helps the seals to last longer.
11. CYD-S1500 single nozzle industrial liquid filling machine has a built-in conditioner. With the help of the internal conditioner, extra protection is provided against situations such as water and rust that may occur in the air installation and damage the pneumatic system of the machine.
12. It can be used for filling different types of liquids such as fruit juice, water, turnip, low viscosity shampoo, liquid soap, milk, oil, lube oil, syrup.
13. The body of the machine is made of stainless steel.
14. Grounding on the machine chassis is extremely useful against electrical hazards.
15. EThanks to the electro-pneumatic system, dosing is done with higher precision and filling waste is prevented.

Optional Features that can be added to CYD-S1500 - 200-1500ml Liquid Filling Machine

• It can be produced as sensor triggered.
• An optional mechanical position inductor counter can be added. This feature and options are subject to charge.
•


CYD-S1500 - Liquid Filling Machine - 200-1500ml - Other Details

• If additional features are requested, the machine can be delivered in 5-20 days.
• It is packaged appropriately when being sent to points with long distances.
• Thanks to the cargo company contracted by Renas Makina, you can transport the product cheaper than normal. If there is a cargo company that you already have an agreement with, the product can also be sent to you with the cargo in question.
• It comes with a 1-year warranty against fabrication defects.

CYD-S 1500  200-1500ml Sıvı Dolum Makinasında Kullanılan Malzemeler

• All places touched by the product to be filled, outer surface, protection sheet 304 SS stainless steel. Piston and draw pipe protection apparatus are made of aluminum material.
• Airtac brand oil-free piston brand was used as pneumatic equipment.
